Description

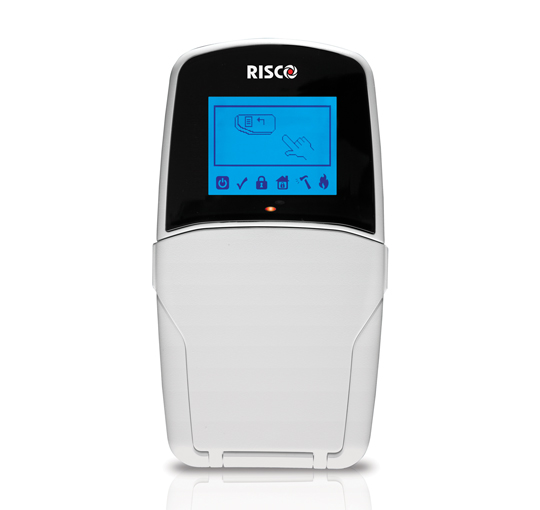

Lightsys LCD Keypad for Alarm Systems

Lightsys LCD Keypad for Alarm Systems. Graphic LCD keypad with or without proximity reader. Compatible with LightSYS and all ProSYS panels.

The user-friendly LightSYS LCD/LCD Proximity keypad enables the simple operation and programming of the LightSYS and ProSYS security systems.

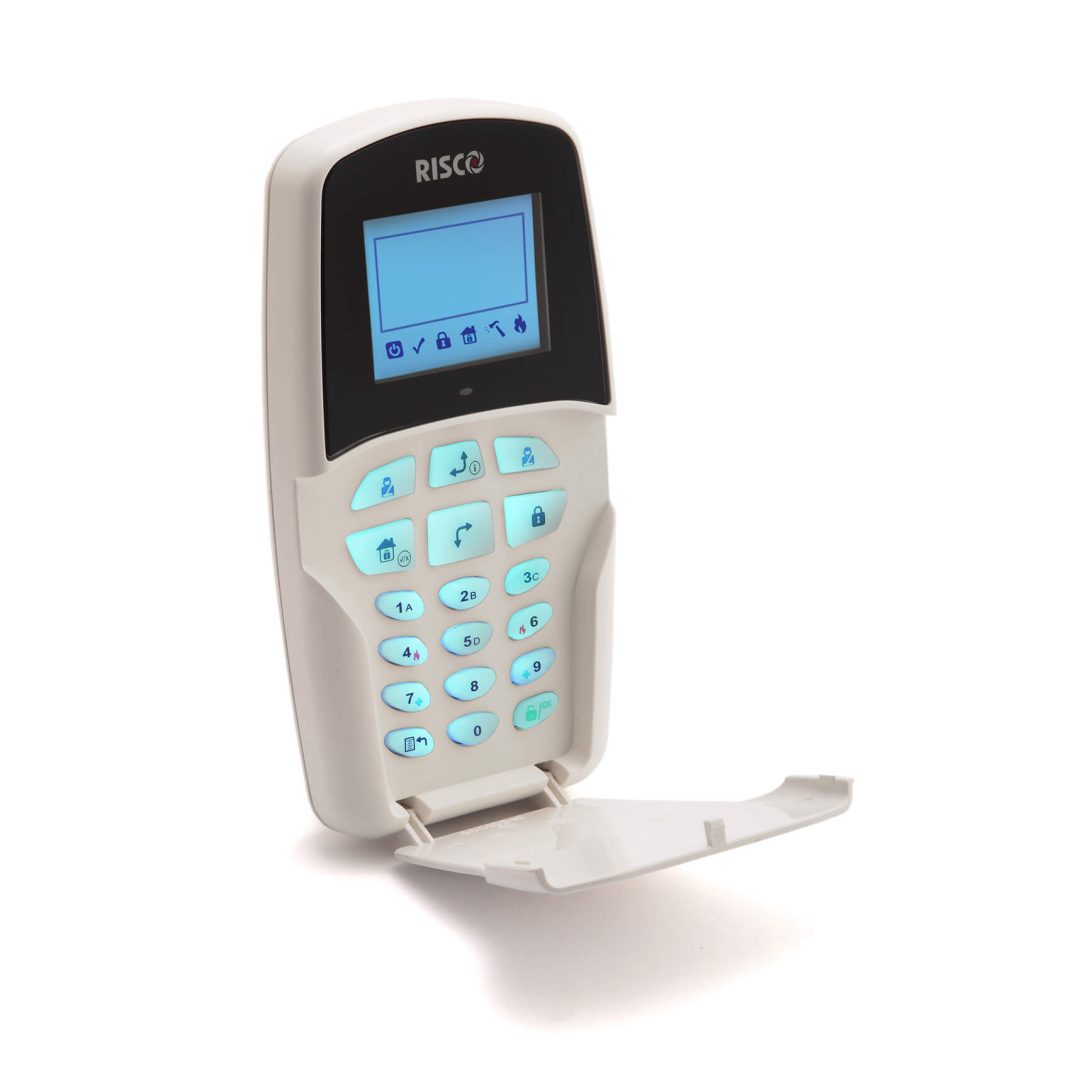

Using the Proximity Tag used with the proximity LCD keypad (RP432 KPP) is correctly used by applying it within a 4 cm distance from the front of the keypad bottom, as shown on the right.

Lightsys keypad Features;

• Make: RISCO Group
• Model code: LightSYS LCD Keypad
• Control Panels & Accessories: Yes
• Keypad Operated: Yes
• Accessories: LCD keypad

Lightsys LCD Keypad for Alarm Systems Technical Specifications
Current consumption
RP432 KP
RP432 KPP
13.8V +/-10%, 48 mA typical/52 mA max.
13.8V +/-10%, 62 mA typical/130 mA max.
Main panel connection 4-wire BUS, up to 300 m (1000 ft) from Main Panel
Dimensions 153 x 84 x 28 mm (6.02 x 3.3 x 1.1 inch)
Operating temperature -10°C to 55°C (14°F to 131°F)
Storage temperature -20°C to 60°C (-4°F to 140°F)
Prox. RF frequency 13.56MHz
Complies with EN 50131-3 Grade 2 Class II

Ordering Information Model Description
RP432 KP LightSYS LCD Keypad
RP432 KPP LightSYS LCD Keypad with Proximity 13.56MHz
RP200KT 10 prox keytags (13.56MHz).
