30Amps switch mode power supply unit
Availability:In Stock!

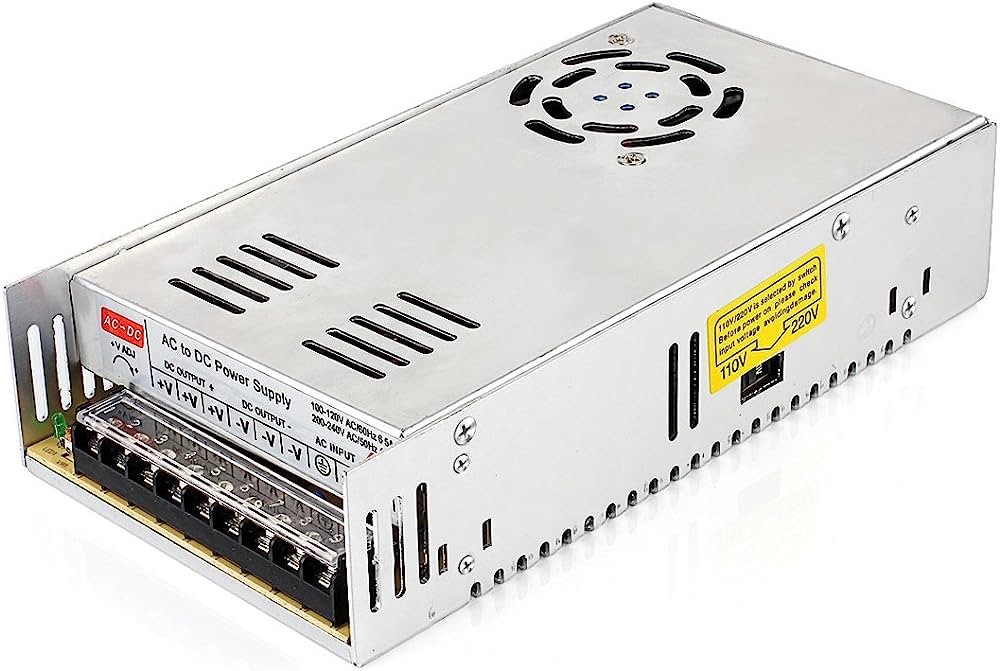

30Amps switch mode power supply unit
12V 30 Amp CCTV Power Supply Open is a 240W 712V/30A Highly Reliable, Universal AC input/full range single output power supply. They have the approval of UL and CE and come 100% full load burn-in tested and are protected from overload/over and voltage/short circuit.
KSh3,000.00 Excl. VAT
CompareDescription
30Amps switch mode power supply unit
- Brand: PowerSupply1
- Complies with RoHS Directive
- AC Input Voltage Range: 85-132/ 170-264VAC Selected by Switch
- Input Frequency: 47-63Hz
- Inrush Current: Cold Start, 20A/115V, 40A/230V
- Input Leakage Current: <0.7mA/230V
- Line Regulation (Full Load): <± 0.5%
- Output Voltage Adj. Range: ± 10%
- Output Overload Protection: 110-130% Constant Current, Auto Recovery
- Output Over Voltage Protection: 115-150%
- Withstand Voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
- Rise Time: 50ms @full load (typical)
- Hold Up Time: 20ms @full load (typical)
- Operating temp.& humidity: -10°C to 50°C (14°F – 122°F), 20%-93%RH (non-condensing)
- Storage temp.& humidity: -20°C to 85°C (-4°F – 185°F), 20%-93%RH (non-condensing)
- Safety Standards: GB4943, UL60950, EN60950
- EMC Standards: GB9254, EN55022 classA
- Cooling Method: Convection
