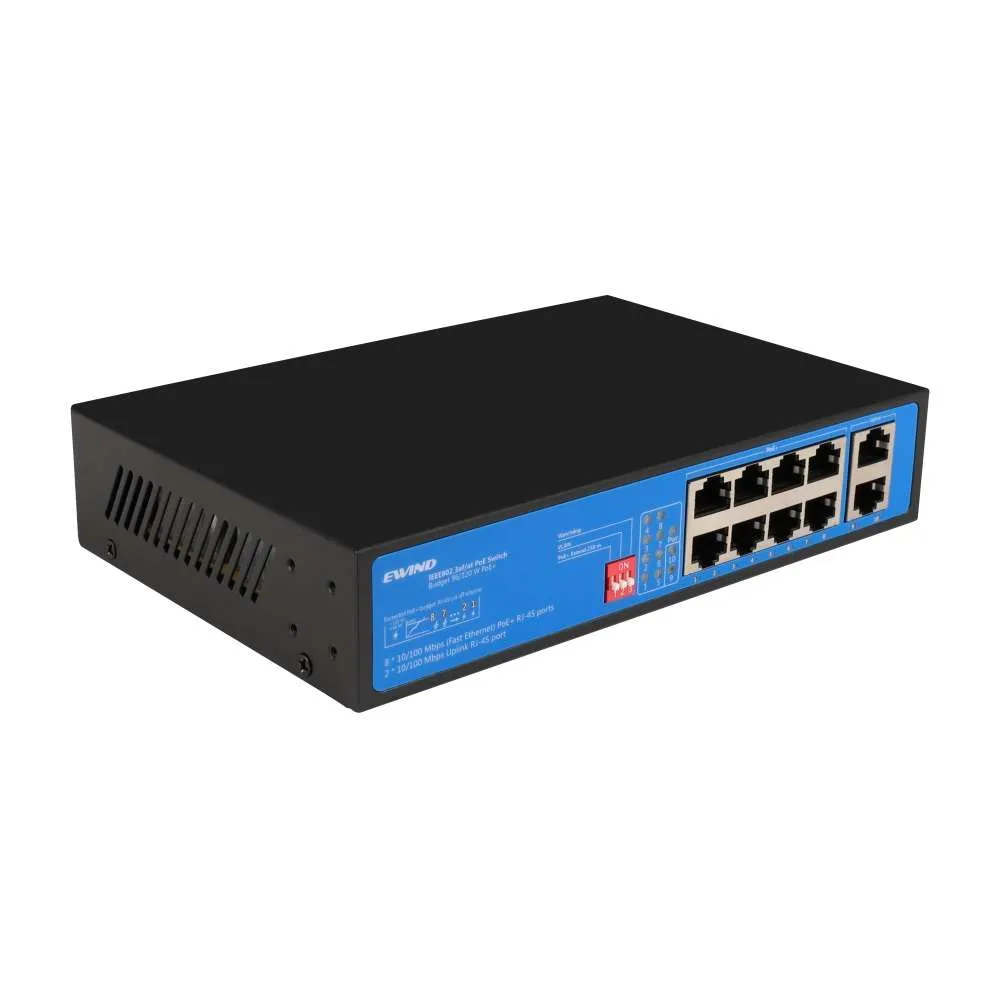

8 PORT EWIND POE SWITCH – EW-S1910CF-AP
Availability:In Stock!
8 PORT EWIND POE SWITCH – EW-S1910CF-AP
- 8*10/100M + 2*100MRJ45 Port PoE Switch,1-8 ports support IEEE 802.3af/at;
- Comply with IEEE 802.3, IEEE 802.3u standards;
- Support AI Watchdog, Port self-healing, VLAN, extend 300meter distance, Auto Speed Change, Priority port & reduce the after-resale;
- PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port,Maximum power: 30W/port;
- Supports POE devices such as wireless access points (APs) and network surveillance cameras through Category 5/6 Ethernet cables;
- The Power supply is 120W;
KSh6,500.00 Excl. VAT
Description
8 PORT EWIND POE SWITCH – EW-S1910CF-AP
Good Price10 Ports 100M PoE Switch with Build-in Power Supply
Model: EW-S1910CF-AP
- 8*10/100M + 2*100MRJ45 Port PoE Switch,1-8 ports support IEEE 802.3af/at;
- Comply with IEEE 802.3, IEEE 802.3u standards;
- Support AI Watchdog, Port self-healing, VLAN, extend 300meter distance, Auto Speed Change, Priority port & reduce the after-resale;
- PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port,Maximum power: 30W/port;
- Supports POE devices such as wireless access points (APs) and network surveillance cameras through Category 5/6 Ethernet cables;
- The Power supply is 120W;
- 3 years warranty.
Specifications:
| Model | EW-S1910CF-AP |
| Fixed Port | 8*10/100Base-T/TX PoE ports (Data/Power)
2*10/100Base-T/TX Uplink RJ45 ports (Data) |
| POE Port | Port 1-8 support PoE @ IEEE802.3af/at |
| Feature | With the Dial code switch, support port priority by default.
E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-8Â Port support each port Isolation & VLAN; D: Turn on, 1-8Â Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale. |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX; IEEE802.3x. |
| PoE Standard | IEEE802.3af/at |
| Ethernet Port Feature | 10/100Base–T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive |
| Fiber Port Feature | Store and Forward |
| Switching Capacity | 2Gbps |
| Forwarding Mode | 1.49Mpps |
| MAC | 2K |
| Buffer Memory | 1.25M |
| Twisted Pair Transmission | 10BASE-T:Cat5 UTP(≤250 meter)
100BASE-TX:Cat5 or later UTP(≤100 meter) |
| Power Supply Pin | Default 1/2(+), 3/6(-); |
| MAX / AVERAGE Power Per Port | 30W/15.4W |
| Total PWR / Input Voltage | 120W (52VDC) |
| Power Consumption | Standby:<4W;Full load:<120W |
| LED Indicator | Power indicator: PWRÂ (Green);
Network indicator: 1-8(Link/Act)/ (Green),9–10(Link/Act)/ (Green), |
| Power Supply | Build-in power adaptor AC100~240V 50-60Hz,120W |
| Operation TEMP / Humidity | -20~+55°C:5%~90% RH non condensing |
| Storage TEMP / Humidity | -40~+75°C;5%~95% RH non condensing |
| Dimension | 195*130*40mm |
| Net /Gross Weight | <1kg / <1.5kg |
| Installation Method | desktop type ,wall mounted |
| Protection | IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV |
| Protection Level | IP30 |
| Port lightning protection / level | Port lightning protection : 4KV 8/20us;
Protection level: IP30 |
| Certification | CCC;CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS |
| Warranty | 3 years, lifetime maintenance. |
