Astel Rg6 Aerial Cable 200m
Availability:In Stock!

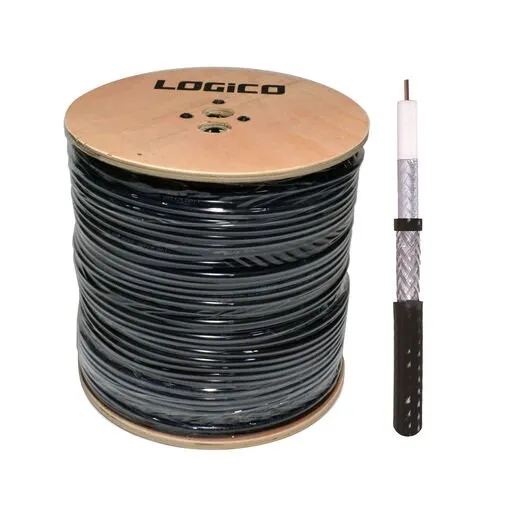

Astel Rg6 Aerial Cable 200m
Astel RG6 200 Meters Coaxial Cable is suitable for reception and distribution of all kinds of Digital and Analog Satellite Signals i.e. DVB-S/S2, DVB-T/T2, QPSK, QAM, COFDM etc. ASTEL RG-6 CCS Series is SD/HD/FHD READY .
ASTEL RG-6 CCS Series have been designed for high shielding efficiency and low attenuation. RG6 200 Meters Coaxial Cable are designed and manufactured to meet the increasing demands of Satellite (SMATV), Cable TV (CATV), and Antenna Reception (MATV) applications.
KSh6,000.00 Excl. VAT
Description
Astel Rg6 Aerial Cable 200m
| Model Product | RG-6 70AL | RG-6 90AL | CS697BV |
| Inner Conductor | CCS | CCS | CCS |
| Dielectric | Foam PE | Foam PE | Foam PE |
| 1st Shield | Bonded AP Foil | Bonded AP Foil | Bonded AP Foil |
| 2nd Shield | AL-MG Braiding | AL-MG Braiding | AL-MG Braiding |
| Braid Coverage | 70% Coverage | 95% Coverage | 97% Coverage |
| 3rd Shielding | NA | NA | NA |
| 4th Shielding | NA | NA | NA |
| Jacket | PVC | PVC | PVC |
| ROHS Compliance | NA | NA | NA |
| Construction | |||
| Center Conductor Diameter | 1.02 mm | 1.02 mm | 1.02 mm |
| Foam PE | 4.80 mm | 4.57 mm | 4.57 mm |
| 1st Shield | 4.95 mm | 4.73 mm | 4.73 mm |
| 2nd Shield | 5.30 mm | 5.32 mm | 5.32 mm |
| 3rd Shield | NA | NA | NA |
| 4th Shielding | NA | NA | NA |
| Jacket Material | PVC | PVC | PVC |
| Jacket | 6.85 mm | 6.91 mm | 6.91 mm |
| Jelly (For Corrosion Protection) | NO | NO | NO |
| Electric Specifications | |||
| Nominal DCR @ 20 deg C | |||
| Inner Conductor | 117 ohms/KM | 102 ohms/KM | 102 ohms/KM |
| Outer Conductor | 62 ohms/KM | 27 ohms/KM | 26 ohms/KM |
| Nominal Capacitance | 53.0 pf | 53.0 pf | 53.0 pf |
| Impedance | 75±3 ohms | 75±3 ohms | 75±3 ohms |
| Return Loss | ?18 dB | ?20 dB | ?22 dB |
| Propagation Velocity Ratio | 82% | 82% | 82% |
| Insulation Resistance | ?2000M? | ?2000M? | ?2000M? |
| Packing | |||
| 100Y CTN Size QTY-6 pcs/CTN | 28x28x58 cms | 28x28x58 cms | 28x28x58 cms |
