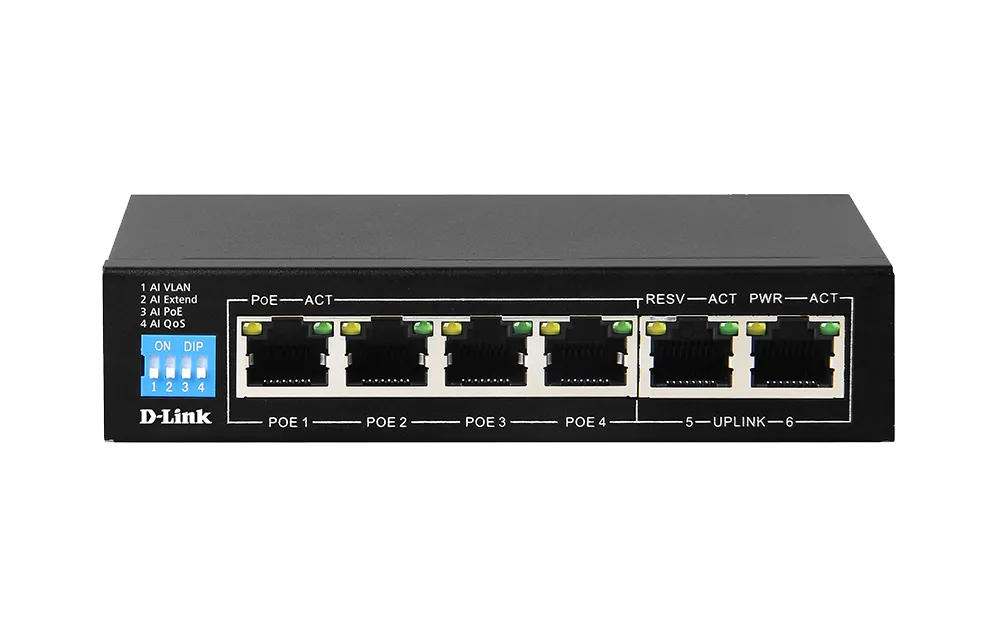

D-Link DGS-F1006P-E 250M 6-Port 1000Mbps Switch with 4 PoE Ports and 2 Uplink Ports

• Description
• Reviews (0)

Description

D-Link DGS-F1006P-E 250M 6-Port 1000Mbps Switch with 4 PoE Ports and 2 Uplink Ports

DGS-F1006P-E D-Link 250M 6-Port 1000Mbps Switch with 4 PoE Ports and 2 Uplink Ports featuring 4 PoE (Power over Ethernet) ports and 2 uplink ports. It is designed for small businesses, home offices, and other environments requiring a simple yet powerful networking solution with PoE capabilities. The switch is particularly suited for IP surveillance deployments, as it can extend the maximum distance of Ethernet connections up to 250 meters, which is beyond the standard 100 meters limitation. The D-Link DGS-F1006P-E 6-Port 10/100/1000 Switch with 4 PoE Ports enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), IP cameras, and IP phones to the network. Built with home and small business users in mind, the DGSF1006P-E is compact and operates silently, making it ideal for most rooms and offices

Power over Ethernet

DGS-F1006P-E features four 10/100/1000 BASE-T ports that support the IEEE 802.3af and IEEE 802.3at PoE protocols, supplying up to 30W on each PoE port up to 250m and providing a total power budget of 60 W. You can connect compatible devices to the DGS-F1006P-E without using an additional power supply. This allows you to save on cabling and to install devices in locations without immediate access to power outlets.

High Performance

The DGS-F1006P-E features plug-and-play installation and requires no configuration. Auto MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch or hub, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. With wire-speed filtering and store-and-forward switching, the DGS-F1006P-E maximizes network performance while minimizing the transmission of bad network packets.

Key features and specifications of the DGS-F1006P-E D-Link 250M 6-Port 1000Mbps Switch with 4 PoE Ports and 2 Uplink Ports

• Ports:
  • 4x 10/100 Mbps Fast Ethernet ports with PoE support
  • 2x 10/100 Mbps uplink ports for connecting to other network devices or switches
• PoE Support:
  • 60W total PoE power budget, enabling you to power multiple PoE-enabled devices such as IP cameras, access points, or VoIP phones
• Flow Control: Provides protection against data loss by ensuring that devices do not become overwhelmed by incoming traffic
• Extended Range: Supports a maximum distance of 250 meters between devices, allowing for flexible deployment of PoE devices in larger areas
• Quality of Service (QoS) Capabilities: Ensures that high-priority traffic, such as VoIP or video, is prioritized over other types of traffic for improved performance
• Surge Protection: 6kV surge protection helps safeguard connected devices against voltage spikes and other electrical disturbances, enhancing overall network reliability

The D-Link DGS-F1006P-E is a cost-effective and versatile solution for small businesses and home offices looking for a PoE-enabled switch with extended range capabilities. Its simple design, QoS features, and surge protection make it an ideal choice for deployments that require reliable and efficient networking performance.
