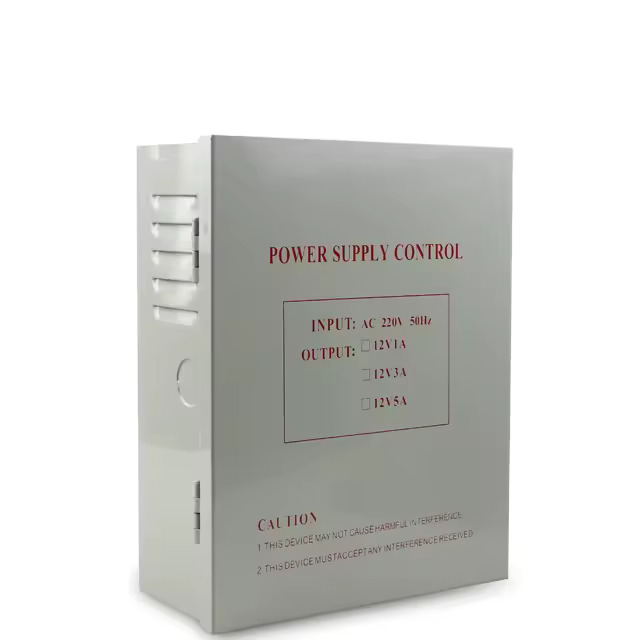

GD5AP 5amp PSU—-Normal Quality , No Lock

GD5AP 5amp PSU—-Normal Quality , No Lock is a versatile DC backup power source compatible with different devices, including access control systems featuring electric locks. Its broad input voltage range enables usage in different environments. The factory’s output voltage is 12 volts, and the operating current is 5 amperes, making it compatible with the majority of locks available. For ease of use, the board offers terminals to connect the “exit” button from within the room, along with NC, NO, and COM terminals for lock connections.

Features

1: NO terminal and COM terminal, typically open with no output, key trigger output is DC 12V, connected to electronically controlled lock (0-15 seconds delay, one positive, three negative);

2: NC terminal and COM terminal, DC 12V normally closed output, when the power button is activated, then the electric or magnetic latch, Power locks (0-15 seconds delay, 2 positive, 3 negative);

3: The output voltage regulation is DC 12V, where 4 is positive and 5 is negative;

4: Open button input terminal (for negative power supply), which can be accessed to switch output (relay output, low) for controlling the electric lock access control system;

5: Activate the button on the input terminal (connected to the positive power supply), which enables the control of the switch output (relay output, high level) for the electric lock access control system;

6: 12V input voltage entry, specifically for the direct management of the output voltage electric lock access control.
