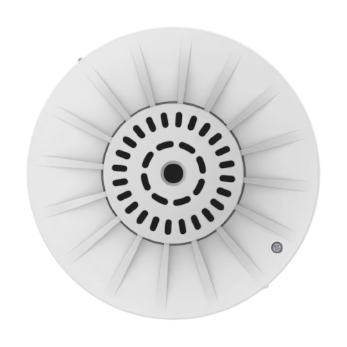

Hikfire Addressable Heat Detector-(JTW-ZOM-HK8003)
Availability:In Stock!
Hikfire Addressable Heat Detector-(JTW-ZOM-HK8003)
JTW-ZOM-HK8003 – HIKVISION Addressable Heat Detector is an intelligent fire detection device designed to detect abnormal increases in temperature, making it ideal for areas where smoke detectors may cause false alarms due to dust, steam, or fumes. It communicates directly with a Hikvision addressable fire alarm control panel, providing fast and accurate fire detection.
KSh2,500.00 Excl. VAT
Description
Hikfire Addressable Heat Detector-(JTW-ZOM-HK8003)
Key Features
- Intelligent addressable heat detector
- Rapid and reliable heat detection
- Advanced microprocessor for stable performance
- 360° LED status and alarm indicator
- Non-polarity two-wire communication
- High resistance to dust, humidity, and electromagnetic interference
- Easy installation and maintenance
- Compatible with Hikvision addressable fire alarm systems
| Parameter | Specification |
|---|---|
| Model | JTY-GM-HK8001 |
| Detection Type | Photoelectric smoke detection |
| Detector Type | Addressable point-type smoke detector |
| Operating Voltage | DC 18–28 V |
| Rated Voltage | DC 24 V |
| Monitoring Current | ≤ 200 μA |
| Alarm Current | ≤ 400 μA |
| Wiring | 2-wire, polarity-free |
| Address/Coding Range | 1–250 |
| Protection Area | 60–80 m² |
| Indicator | 1 × red LED |
| Alarm Indicator | 360° visible |
| Communication Bus | Addressable two-wire bus |
| Recommended Cable | RVS 2 × 1.5 mm² flame-retardant cable |
| Maximum Bus Distance | Up to 1,000 m |
| Operating Temperature | -10°C to +55°C |
| Relative Humidity | ≤95%, non-condensing |
| Dimensions | Ø100 × H55 mm, including base |
| Weight | Approx. 107 g |
| Standard | GB 4715-2005 |
