Ubiquiti EdgeSwitch 24 Port 250W Gigabit Switch (ES 24-250W)

• Description
• Reviews (0)

Description

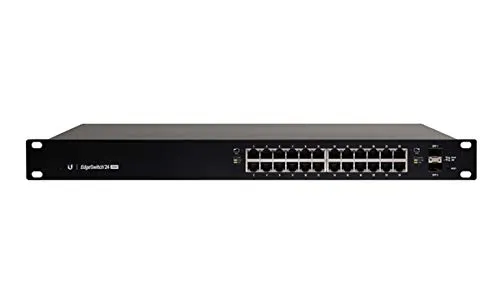

Ubiquiti EdgeSwitch 24 Port 250W Gigabit Switch (ES 24-250W)

Ubiquiti EdgeSwitch ES-24-250W is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Ubiquiti EdgeSwitch ES-24-250W Key Features

• Total Non-Blocking Throughput – 26 Gbps
• Gigabit RJ45 Ports – 24
• SFP+ Ports – N/A
• SFP Ports – 2

• Max. Power Consumption – 250W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Rackmountable

Optical Fiber Backhaul
Ubiquiti EdgeSwitch ES-24-250W features two SFP ports, which supports uplinks of up to 1 Gbps.
Convenient PoE+ Support
Ubiquiti EdgeSwitch 24 Port 250W also features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

Specifications
Dimensions 485.04 x 44.45 x 285.6 mm (19.1 x 1.75 x 11.24″)
Weight 3.7 kg (8.16 lb)
Total Non-Blocking Throughput 26 Gbps
Max. Power Consumption
ES-24-250W: 250W
ES-24-500W: 500W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply
ES-24-250W: AC/DC, Internal, 250W DC
ES-24-500W: AC/DC, Internal, 500W DC
LEDs Per Port
RJ45 Data Ports
SFP Data Ports
PoE, Speed/Link/Activity
Speed/Link/Activity
Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface Ethernet In/Out Band
Certifications CE, FCC, IC
Rackmount Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
