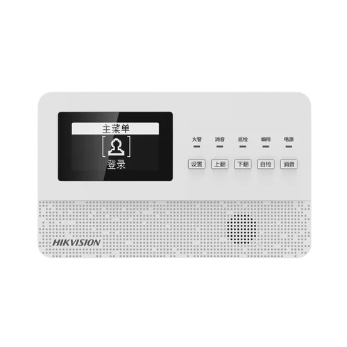

HikFire Addressable Fire Display Panel – HK-XS-8016
Availability:In Stock!
HikFire Addressable Fire Display Panel – HK-XS-8016
HikFire HK-XS-8016 Addressable Fire Display Panel provides clear local indication of fire alarm events within a monitored area. Featuring a 128 × 64 LCD display, audible and visual alarm indication, and a non-polarity two-wire communication bus, the panel allows personnel to quickly view fire alarm information and identify events. Its compact wall-mounted design makes it suitable for offices, hotels, commercial buildings, industrial facilities and other premises using HikFire addressable fire alarm systems.
KSh15,000.00 Excl. VAT
Description
HikFire Addressable Fire Display Panel – HK-XS-8016
Key Features
- Large LCD display for clear fire alarm information.
- Displays alarm information from monitored areas.
- Audible and visual alarm indication for rapid notification.
- Non-polarity two-wire bus simplifies installation and helps prevent wiring errors.
- Compact wall-mounted design.
- Supports up to 999 records.
- Designed as part of the HikFire addressable fire alarm system.
| Specification | Details |
|---|---|
| Model | HK-XS-8016 |
| Product Type | Addressable Fire Display Panel |
| Display | 128 × 64 dot-matrix LCD |
| Communication | 2-wire non-polarity bus |
| Rated Bus Voltage | 24 V DC |
| Alarm Indication | Audible + visual |
| Installation | Wall mounting |
| Capacity | Up to 999 records |
| Operating Temperature | 0°C to 40°C |
| Relative Humidity | 10%–95% RH, non-condensing at 40°C |
| Standby Current | <1.5 mA |
| Alarm Current | <7.5 mA |
| Dimensions | 180 × 110 × 30 mm |
| Weight | Approx. 210 g |
| Application | Addressable fire alarm systems |
| Standard | GB 17429-2011 |
