Photoelectric Smoke Detector – 868 MHz Interlinked & Wi-Fi Gateway HF-SG3-WF/R8(O-STD)
Availability:In Stock!
Photoelectric Smoke Detector – 868 MHz Interlinked & Wi-Fi Gateway HF-SG3-WF/R8(O-STD)

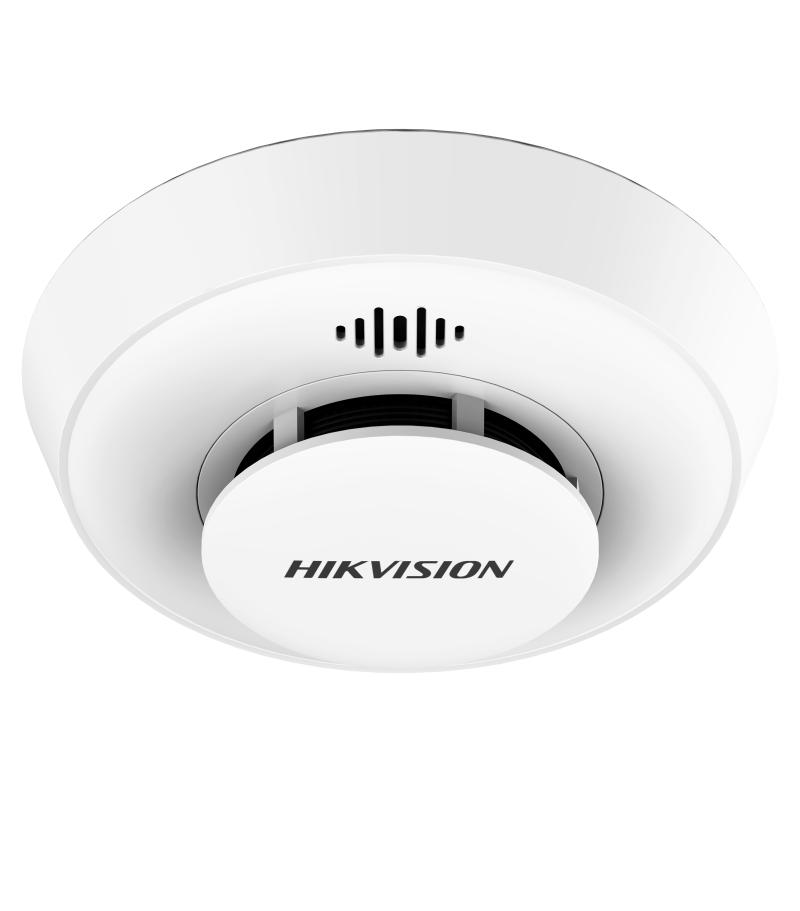

The HF-SG3-WF/R8(O-STD) is a smart standalone photoelectric smoke detector featuring 868 MHz wireless interlink and an integrated Wi-Fi gateway. It provides early smoke detection using dual-light photoelectric sensing and instantly sends alarm notifications to the Hik-Connect app via Wi-Fi. When one alarm is triggered, all interconnected alarms sound simultaneously, providing whole-home fire protection. The detector supports up to 30 interconnected devices and offers a 10-year battery life under normal operation.
KSh7,000.00 Excl. VAT
Description
Photoelectric Smoke Detector – 868 MHz Interlinked & Wi-Fi Gateway HF-SG3-WF/R8(O-STD)
Key Features
- Dual-light photoelectric smoke detection
- Built-in Wi-Fi gateway
- 868 MHz wireless interlink
- Supports up to 30 interconnected smoke alarms
- Instant notifications via Hik-Connect
- 10-year lithium battery life
- Loud ≥85 dB audible alarm
- Audible and visual alarm indication
- Test & Hush button
- Low battery warning
- Self-test function
- Sensor contamination (maze dirty) warning
- Ceiling-mounted installation
| Specification | Details |
|---|---|
| Model | HF-SG3-WF/R8(O-STD) |
| Detection Technology | Dual-Light Photoelectric |
| Communication | Wi-Fi (2.4 GHz) + 868 MHz Wireless |
| Gateway Function | Built-in Wi-Fi Gateway |
| Maximum Interconnected Devices | 30 |
| Alarm Sound Level | ≥85 dB @ 3 m |
| Alarm Mode | Audible & Visual |
| Power Supply | 3 V DC (2 × CR123A Lithium Batteries) or USB Type-C 5 V |
| Battery Capacity | 1600 mAh × 2 |
| Battery Life | Up to 10 Years |
| Quiescent Current | ≤13 μA |
| Alarm Current | ≤150 mA |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | ≤95% RH (Non-condensing) |
| Dimensions | Ø119 × 44 mm |
| Weight | Approx. 182.5 g |
| Installation | Ceiling Mounted |
| Standard | EN 14604:2005/AC:2008 |
Applications
- Homes and apartments
- Villas
- Hotels and guest houses
- Offices
- Schools
- Hospitals
- Retail stores
- Residential buildings
- Small commercial buildings
- Smart home fire protection systems
