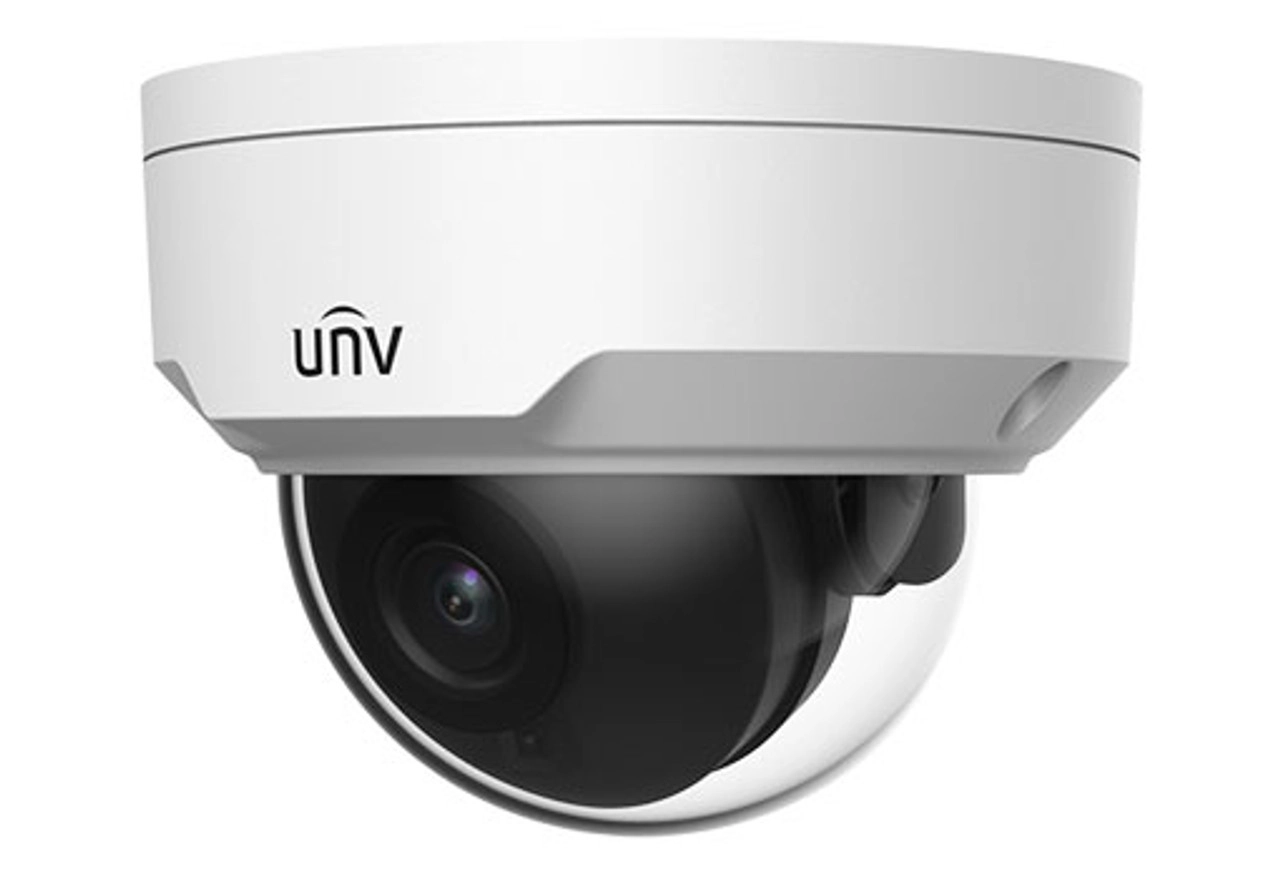

Uniview 4MP WDR Network IR Fixed Dome Camera IPC324ER3-DVPF28
Availability:In Stock!
Uniview 4MP WDR Network IR Fixed Dome Camera IPC324ER3-DVPF28 Camera
- 1/3″ CMOS
- ICR
- 2592×1520: 20fps; 2560×1440: 25fps
- Ultra 265/H.264/MJPEG
- Triple streams
- DC12V & PoE
- Micro SD card slot
- 120dB WDR
- Alarm in/out 1/1
- Audio in/out1/1
- Weatherproof IP67
- Vandal Proof IK10
- Fixed lens 2.8mm
- IR range: up to 98ft
- 3-Axis
KSh12,000.00 Excl. VAT
Description
Uniview 4MP WDR Network IR Fixed Dome Camera IPC324ER3-DVPF28
| IPC324ER3-DVPF28 | IPC324ER3-DVPF40 | |||||
| Camera | ||||||
| Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS | |||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | ||
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | ||
| Angle of View (H) | 95.8° | 82.0° | ||||
| Angle of View (V) | 55.2° | 41.6° | ||||
| Angle of View (O) | 124.5° | 100.9° | ||||
| Adjustment angle | Pan: 3° ~ 360° | Tilt: 0° ~ 68° | Rotate: 3° ~ 360° | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Minimum Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR |
|||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| S/N | >56dB | |||||
| IR Range | Up to 30m (98ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main Profile | |||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps Sub Stream: 4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps |
|||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 2 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180° | |||||
| Dewarping | NA | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| Audio | ||||||
| Audio Compression | G.711 | |||||
| Two-way audio | Supported | |||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 256GB | |||||
| Network Storage | ANR | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||
| Client | EZStation EZView EZLive |
|||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||
| Interface | ||||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | |||||
| Output: impedance 600Ω; amplitude 2V [p-p] | ||||||
| Alarm I/O | 1/1 | |||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||
| Certifications | ||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
|||||
| General | ||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||
| Power consumption: Max 5.5W | ||||||
| Dimensions (Ø x H) | Φ108.7 x 81.1mm (Ø4.3” x 3.2”) | |||||
| Net Weight | 0.45kg (0.99lb) | |||||
| Material | Metal + Plastic | |||||
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Strorage Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | 2KV | |||||
| Ingress Protection | IP67 | |||||
| Vandal Resistant | IK10 | |||||
