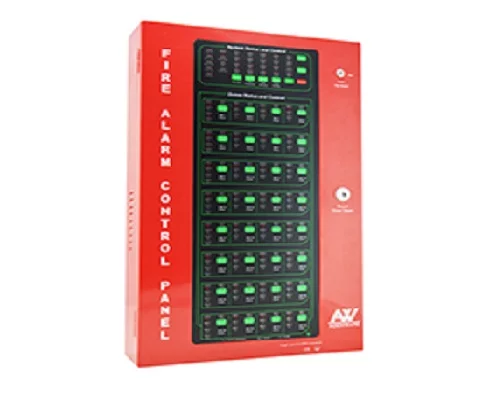

Asenware AW-CFP2166 16 Zone Conventional Fire Panel


Availability:In Stock!

Asenware AW-CFP2166 16 Zone Conventional Fire Panel
  • It is modularized design, the panel can expend from 1 zone to 32 zones easily.
  • It has 2 level control mode by a lock
  • It has 24VDC and 5VDC power supply output.
  • It has FIRE and FAULT signal output.
  • It has 2 general sounders output.
  • Each zone has 1 circuit detectors input .Each zone can be disable by a button.
  • It has RESET button to reset the panel.
  • It has SILENCE button to stop BUZZER and SOUNDERS.
  • It has EVACUATE button to start a manual fire alarm immediately.
  • It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the mains power is on.It
  •  has an optional GSM module for fire alarm by SMS .

KSh37,500.00 Excl. VAT

Please confirm product availability before placing an order.
Delivery within 24 hours. Same day delivery within Nairobi.
Secure Payment Options
Mpesa Payment Visa Payment Mastercard Payment

Order on Whatsapp



Asenware AW-CFP2166 16 Zone Conventional Fire Panel

The AW-CFP2166 series 8 Zone conventional fire alarm panel is designed based on EN54 part 2&4 standard. And it is the central part of conventional fire alarm system, designed for applications requiring smoke detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button. The basic unit offers 1 to 8 zones of initiation, up to 16 zones for larger applications.

Mains supply voltage 110VAC or 220VAC
Internal power supply 27.2VDC
Total output current limited 3A @ 220VAC
Batteries (default configuration) 12V2.3AH*2
Number of circuit 12-32
End of Line device 6.8k Ω,5% tolerance, 0.5-1W (colour code-blue,grey,red,gold)
Call point resistor value 470 to 680 Ω, 0.5 or 1 watt
Number of general circuits 2
Outputs fused AT 600mA
Maximum number of bells @ 50mA of each Sounder output 30
Battery fuse 1.85A resettable fuse
Sounder outputs 750mA resettable fuse
Output type NC and NO relay
Maximum current 100mA
Largest acceptable conductor size 2.5mm2
Smallest acceptable conductor size 0.75mm2
Dimensions(mm) 640X390X150
Weight (with batteries) 13kg
